01Instructions

Background​

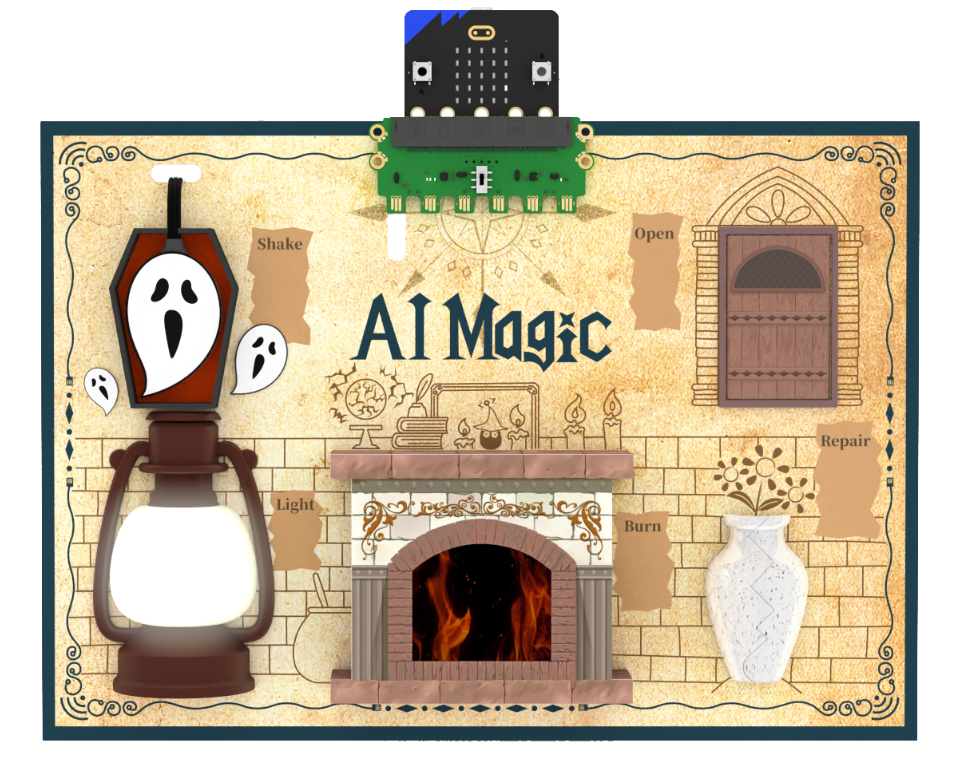

The AI Magic Kit is specifically designed for the BBC micro:bit V2. Centered around magic, it recreates the experience of casting spells by waving a magic wand through motion recognition and wireless communication, bringing a new dimension of fun to children's coding education.

In classroom settings, students can train models using their own motion data on CreateAI, intuitively observe and adjust data samples, then deploy these models to their micro:bit V2 via MakeCode for execution.

image-20250815105200046

Features​

  • Create AI on your BBC micro:bit using movement and machine learning. Train a machine learning model on your own movement data and run it on your micro:bit.
  • The Jacdac interface can be connected in both positive and negative directions. And users do not need to care about the port characteristics, just plug it in.
  • New programming experience, plug and play programming blocks. Provide an abstract view of a device's features, allowing a consistent coding and simulation.
  • The connectivity is no longer point-to-point radial connections from the main controller to modules; connection nodes can now branch arbitrarily.

Parts List​

Controller​

  • micro:bit V2 x 2
  • battery pack x 1
  • AAA Batteries x 2

Modules​

  • Jacdaptor x 1
  • Jacdac-Power x 1
  • Jacdac-Hub_b x 1
  • Jacdac-RGB Strip x 1
  • 10 Pixels Flexible Light Strips x 1
  • Jacdac-Servo x 1
  • GeekServo 9G Servo x 2
  • Jacdac-Haptic Output x 1
  • Jacdac-RGB Ring x 1

Cable​

  • microUSB 1m x 1
  • Type-C 1m x 1
  • Jacdac Cable 10cm x 3
  • Jacdac Cable 35cm x 3

Additional Components​

  • Wooden board (210mm × 297mm × 3mm) x 1
  • Wooden Stick (300mm, φ8mm) x 1
  • 3D Printed Part
  • Stickers
  • 1cm Round Double-Sided Tape (Sheet)
  • Brass Standoff x 4
  • Screws m3 x 10
  • Screws m2 x 8
  • Screwdriver x 1
