6.Fire Prevention Device
Case Description
The servo drives the flame sensor to perform radial scanning and detect whether there is a flame. When a flame is detected, an alarm is triggered.
###Key Knowledge Points
• How to use the Sugar flame sensor
##Case Implementation
###Structural Assembly Fire Prevention Device.pdf
###Circuit Connection
- Connect the flame sensor to the Robotbit P0 terminal block.
- Connect the servo to the Robotbit S1 socket.
###Programming

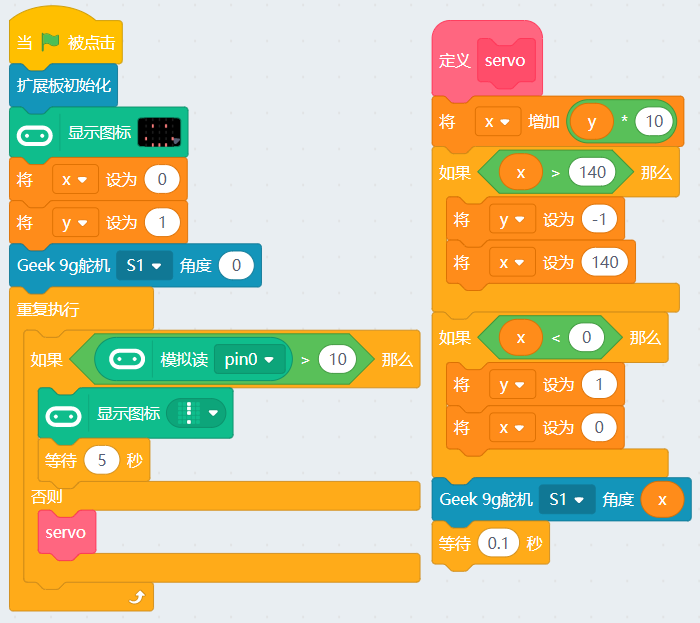

1、The flame detection is connected to P0. When the detected value is greater than 10, it indicates the presence of a flame, and the LED matrix displays a warning!
2、If no flame is detected, the servo rotates back and forth within the range of 0 to 140 degrees.
