Cat Head Ultrasonic Sensor

Cat Head Ultrasonic Sensor

This module comes with a stable distance measurement algorithm that calculates distance by transmitting and receiving ultrasonic waves.

参数​

Size48 x 44 x 19 mm
Weight10 g

Wiring​

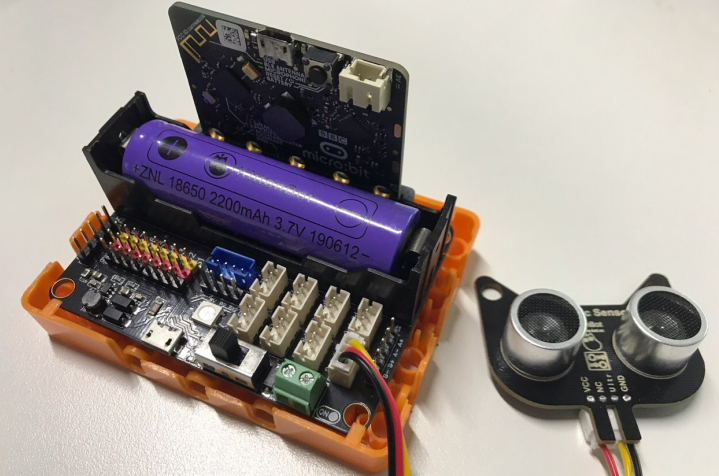

Cat Head Ultrasonic Module can be connected to any of the eight white terminals on the RobotbitEdu. The module comes with a special 4-to-3 connecting cable—please pay attention when using it.

Programming​

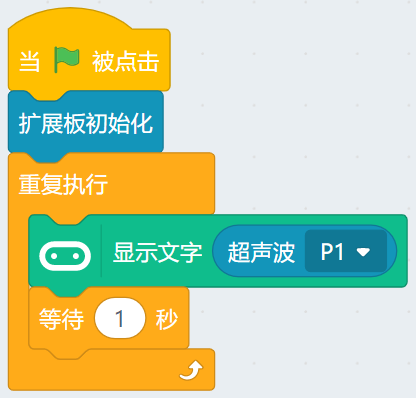

#Ultrasonic Sensor returns distance measurements

  1. Ensure the programming pins for the ultrasonic sensor match the physical connections.
  2. Initializing the expansion board is required when using the ultrasonic sensor.
